Unit: set
Pressure: 1.3 - 1.5 ATA
Type: ZY-HOC-S15ti
Brand: ZOY
MOQ: 1
Package: Carton, Wooden Package
Product Introduction

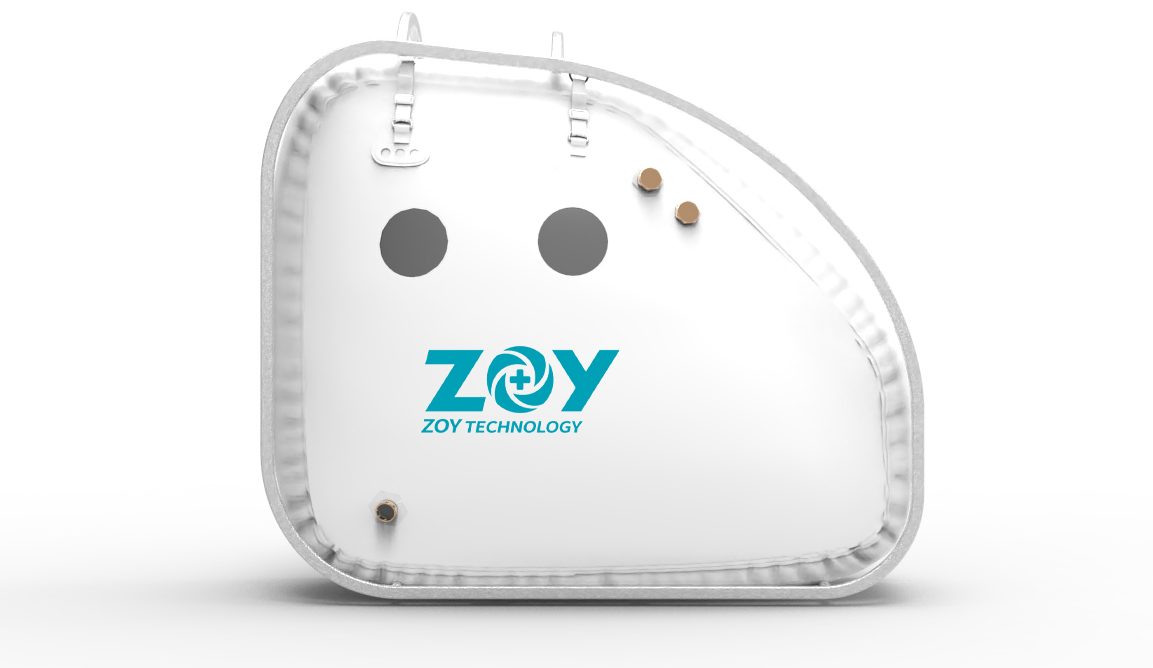

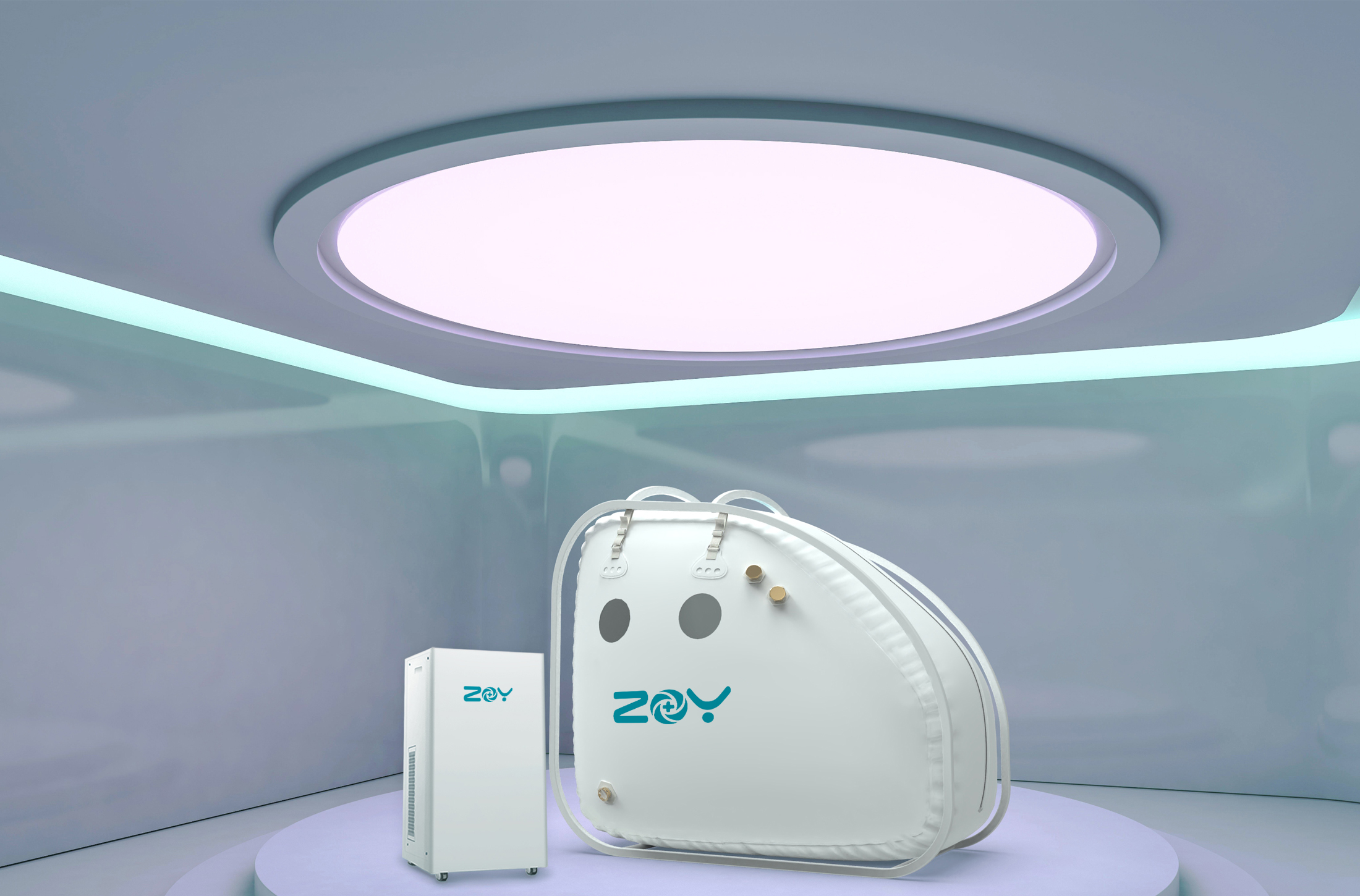

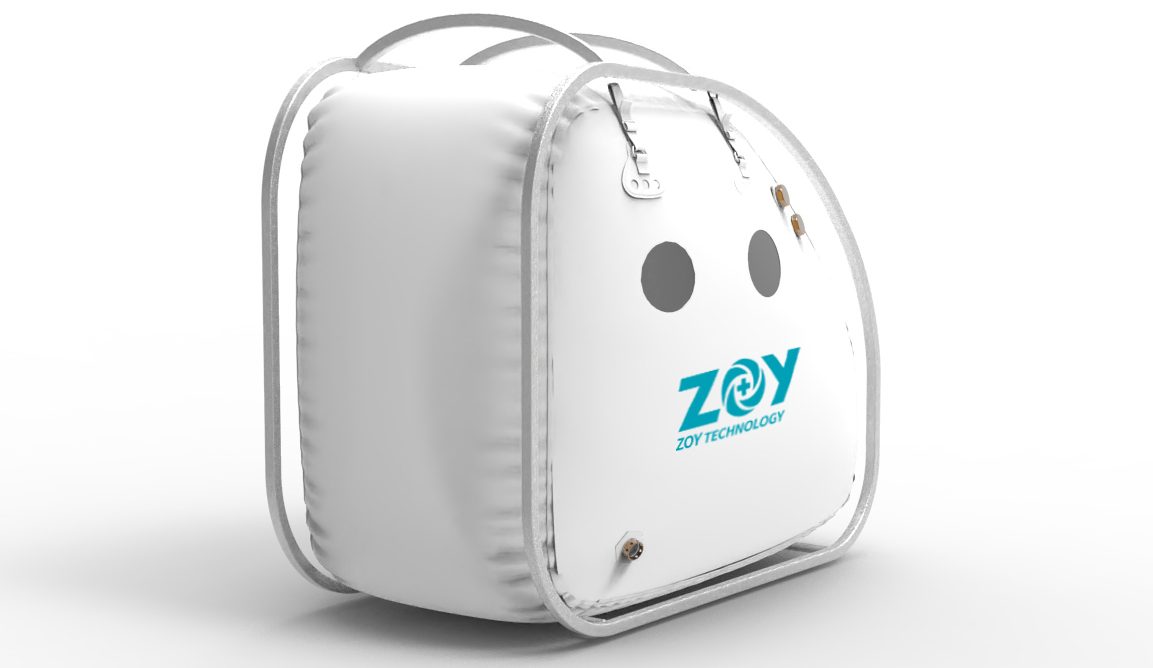

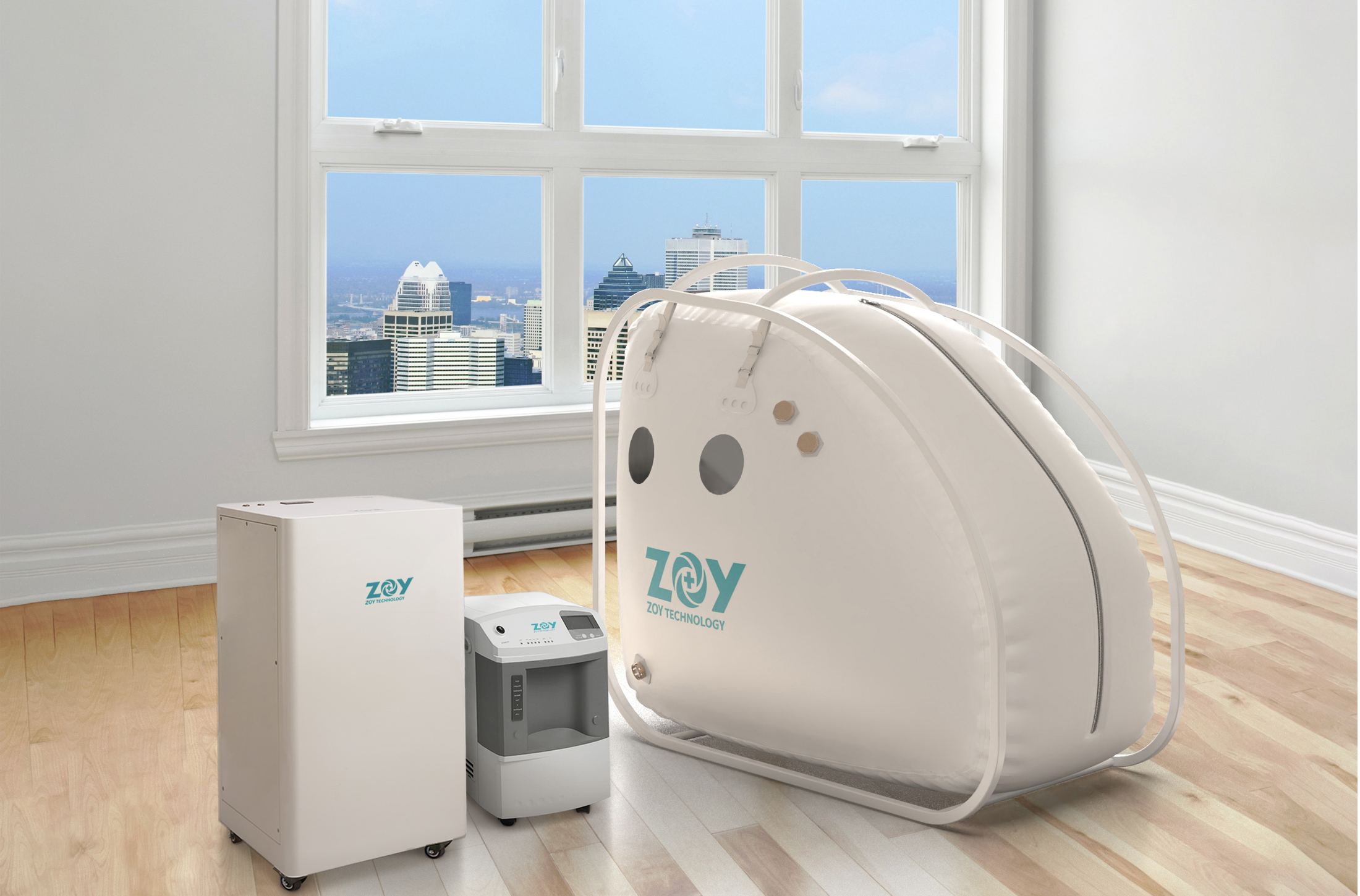

ZOY soft hyperbaric oxygen chamber includes soft chamber, PSA oxygen concentrator and cooling compressor.
Portable Lying type oxygen chamber could meet various requirement suitable for hospital, clinic, home, sport gym, beauty spa, etc..with different healthcare function.
PSA oxygen concentrator pumps 90%-96% oxygen with 5LPM/10LPM, Cooling compressor supplies cooled air into the chamber to create an oxygen-rich and high atmospheric pressure environment.
In hyperbaric oxygen chamber, the purity of oxygen could up to more than 23%-25% ( only 20~21% in our normal atmosphere) and the atmospheric pressure will be up to 1.3 times higher than normal pressure.
The oxygen breathing in such rich oxygen and pressurized chamber would help the body receive sufficient oxygen and transport it to blood cells to promote the tissue cell ls to get supplemental oxygen and to improve the natural healing powers of our body.
Features
Specification
| Chamber type | Soft Chamber |
| Oxygen supply type | PSA type |
| Material of chamber | TPU |
| Size of ZOY chamber | L1500*W1600*H1170 L1670*W1600*H1320 |
| Installation minimum space | 1000*1000*2300mm |
| Weight of ZOY chamber | 12kg/16kg |
| Size of oxygen generator | 365*375*600mm |
| Weight | 27kg |
| Oxygen concentration of oxygen generator(snorting concentration) | ≥93%±3% |
| Oxygen concentration in chamber(average value) | ≤25% |
| Oxygen flow | 0-10L/min |
| Noise | ≤58dB（average value） |
| Power | 550W |
| Voltage | AC220V±22V；50±1Hz |
| Environmental temperature | -10°C~40°C；20%~85%（Relative humidity） |
| Storage temperature | -20°C~60°C |
Cases
Detailed Picture
Your Industry Needs, Our Solutions.
After investigating the oxygen demand and the pipeline system of the hospital…
In this case, we custermized the oxygen generator system and optimized oxygen supply system for them.…
The ZOY integrated medical oxygen generator system, which has been authoritatively tested by the National Testing Center..
Safe & Convenient
Lying type Soft oxygen chamber portable home use for healthcare and beauty.
